Alkota XH4 Hot Water Belt Drive Series
XH4 Belt Drive Series – Key Features
-
Electric powered, oil-fired heating system
-
Portable design with durable non-flat wheels
-
Belt-drive tri-plex pump for smooth, reliable operation
-
High-efficiency electric motor
-
Non-corrosive float tank for longer life
-
High-pressure detergent application system
-
Ergonomic trigger gun for user comfort
-
Includes 15°, 25°, and 40° spray nozzles
-
Heavy-duty Schedule 80 heating coil
-
Hour meter for maintenance tracking
-
Painted orange wrapper and panels for visibility and durability
-
Dakota Cool Bypass System (Patent Pending) – enhances pump and coil life

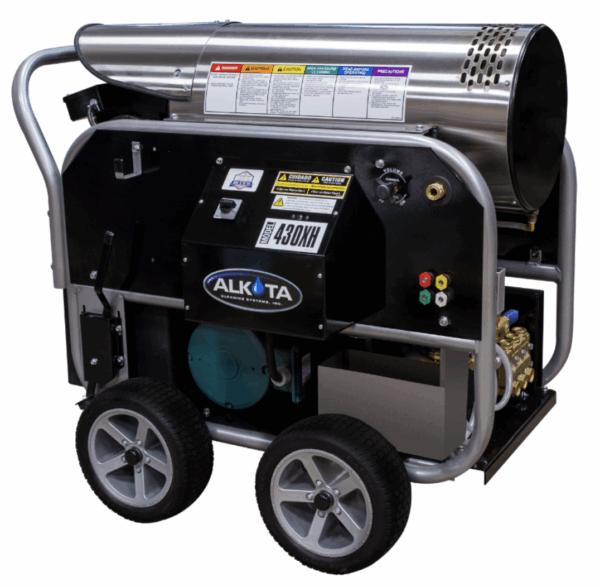

Alkota XH4 Electric Driven Diesel-Fired Portable Hot Water Pressure Washer
Introducing the Alkota XH4 Series – The Next Generation in Portable Hot Water Pressure Washers
The Alkota XH4 Electric Driven Diesel-Fired Portable Hot Water Washer is a cutting-edge addition to our 2021 product lineup, engineered for top-tier performance in demanding environments. Whether you’re tackling heavy-duty industrial cleaning or commercial maintenance, the XH4 Series hot water pressure washer is built to deliver powerful, efficient, and consistent results.
Engineered for High Performance and Efficiency
Designed by Alkota’s expert team of engineers and product developers, the XH4 Series combines the best features of our most trusted systems. With flow rates up to 4 GPM and pressure ratings up to 3,000 PSI, this diesel-fired pressure washer is the ideal solution for professionals who need reliability and customizable cleaning power.
Key Features of the XH4 Series:
-
Electric driven, diesel-fired heating system for reliable and energy-efficient operation
-
Horizontal coil design with Hydro Insulated Coil Technology – proven for superior heat retention and balance
-
Fully customizable options to meet your specific cleaning requirements
-
Compact and portable for on-the-go cleaning in industrial or commercial settings
-
Built in the USA with precision craftsmanship and premium materials
Whether you're in agriculture, manufacturing, transportation, or facility maintenance, the Alkota XH4 Series offers a durable and dependable solution for your hot water pressure washer needs.
XH4 Electric Pressure Washer Standard Features Include:
- Belt Drive – Triplex Ceramic Plunger Pump
- Soft Dampening System For Long Life of High-Pressure Fittings, Pump & Coil
- Adjustable Front Axle for Proper Weight Distribution
- Corrosion Resistant Float Tank
- Built-In Wand & Power Cord Holder
- Winterization Valve For Protection Against Cold Weather Conditions
- 50 ft of High-Pressure Hose, Shut Off Trigger Gun & 42” Insulated Wand w/15° Nozzle
- Schedule 80 Hydro Insulated Coil w/Painted or Optional Stainless Steel Coil Wrapper
- High-Pressure Detergent System w/Precision Metering Valve
- Pneumatic Filled Tires
- Unit Burns Kerosene, Diesel or Home Heating Oil – 8 Gallon Fuel Tank
XH4 Belt Drive Series: Electric • Oil Fired • Portable • Non-Flat Wheels • Belt Drive tri-plex pump • High efficency electric motor • Non-corrosive float tank • High Pressure detergent application • Trigger Gun • 15, 25 & 40 Degree nozzles • Schedule 80 coil • Hour Meter • Painted Orange Wrapper & Panels • Dakota Cool Bypass (Patent Pending)
| MODEL | PERFORMANCE | COIL SIZE | BTU | POWER REQUIREMENT | HP | WT |
| 216XH4 | 2 GPM/1600 PSI | 14” | 196,000 | 115V 1 PH 20A | 2.3 HP | 535 |
| 311XH4 | 3 GPM/1100 PSI | 14” | 273,000 | 115V 1 PH 20A | 2.3 HP | 535 |
| 320XH4 | 3 GPM/2000 PSI | 14” | 273,000 | 230V 1 PH 20A | 4 HP | 535 |
| 324XH4 | 3 GPM/2400 PSI | 14” | 273,000 | 230V 1 PH 30A | 5 HP | 545 |
| 330XH4 | 3 GPM/3000 PSI | 14” | 273,000 | 230V 1 PH 30A | 6 HP | 555 |
| 418XH4 | 4 GPM/1800 PSI | 14” | 350,000 | 230V 1 PH 30A | 5 HP | 615 |
| 420XH4 | 3.5 GPM/2000 PSI | 14” | 350,000 | 230V 1 PH 30A | 5 HP | 545 |
| 425XH4 | 3.5 GPM/2500 PSI | 14” | 350,000 | 230V 1 PH 30A | 6 HP | 575 |
| 430XH4 | 3.9 GPM/3000 PSI | 14” | 350,000 | 230V 1 PH 40A | 8 HP | 685 |
XH4 Xtreme Series Electric: Fuel Solenoid • Adjustable Thermostat • Dakota Cool Bypass (Patent Pending) • Non Flat Wheels • Stainless Steel Wrapper with Black Panels
| MODEL | PERFORMANCE | COIL SIZE | BTU | POWER REQUIREMENT | HP | WT |
| 216XH4 | 2 GPM/1600 PSI | 14” | 196,000 | 115V 1 PH 20A | 2.3 HP | 535 |
| 311XH4 | 3 GPM/1100 PSI | 14” | 273,000 | 115V 1 PH 20A | 2.3 HP | 535 |
| 320XH4 | 3 GPM/2000 PSI | 14” | 273,000 | 230V 1 PH 20A | 4 HP | 535 |
| 324XH4 | 3 GPM/2400 PSI | 14” | 273,000 | 230V 1 PH 30A | 5 HP | 545 |
| 330XH4 | 3 GPM/3000 PSI | 14” | 273,000 | 230V 1 PH 30A | 6 HP | 555 |
| 418XH4 | 4 GPM/1800 PSI | 14” | 350,000 | 230V 1 PH 30A | 5 HP | 615 |
| 420XH4 | 3.5 GPM/2000 PSI | 14” | 350,000 | 230V 1 PH 30A | 5 HP | 545 |
| 425XH4 | 3.5 GPM/2500 PSI | 14” | 350,000 | 230V 1 PH 30A | 6 HP | 575 |
| 430XH4 | 3.9 GPM/3000 PSI | 14” | 350,000 | 230V 1 PH 40A | 8 HP | 685 |
| Stainless Steel Coil Wrapper |
| Pneumatic Wheels in place of Non-Flat Wheels |
| Adjustable Temp. Control w/ Fuel Solenoid (Included in Xtream Series) |
| Rear Wheel Caster Kit 420X-99008 Installed |
| Smart Timer (Auto ON/Auto OFF 20 Sec. Timer Delay w/Adjustable Lock Timer) |
