Alkota Media Filtration Systems
Specifications – Alkota CSF Series Media Filtration Water Treatment System
-
Coalescing System Type:
Media Filtration for efficient removal of oils and solids from wash water. -
Filtration Rate:
Processes up to 10 gallons per minute (GPM) for steady, reliable flow. -
Treatment Tank Capacity:
200-gallon holding capacity for continuous treatment operations. -
Coalescing System Capacity:
Handles 10 GPM throughput to match filtration performance. -
Voltage:
Operates on 115V power for easy integration in standard electrical setups. -
Horsepower:
3/4 HP motor supports consistent performance and low maintenance. -
Phase:
Single-phase system for simple installation and use. -
Fuse Rating:
Rated at 20 amps for safety and proper electrical load management. -
Horizontal Dimensions:
-
Length: 100.75 in
-
Width: 51.25 in
-
Height: 55.75 in
-
-
Vertical Dimensions:
-
Length: 73.25 in
-
Width: 51.25 in
-
Height: 87 in
-
-
Weight:
Heavy-duty design with a total weight of 1,066 lbs for stability and durability.

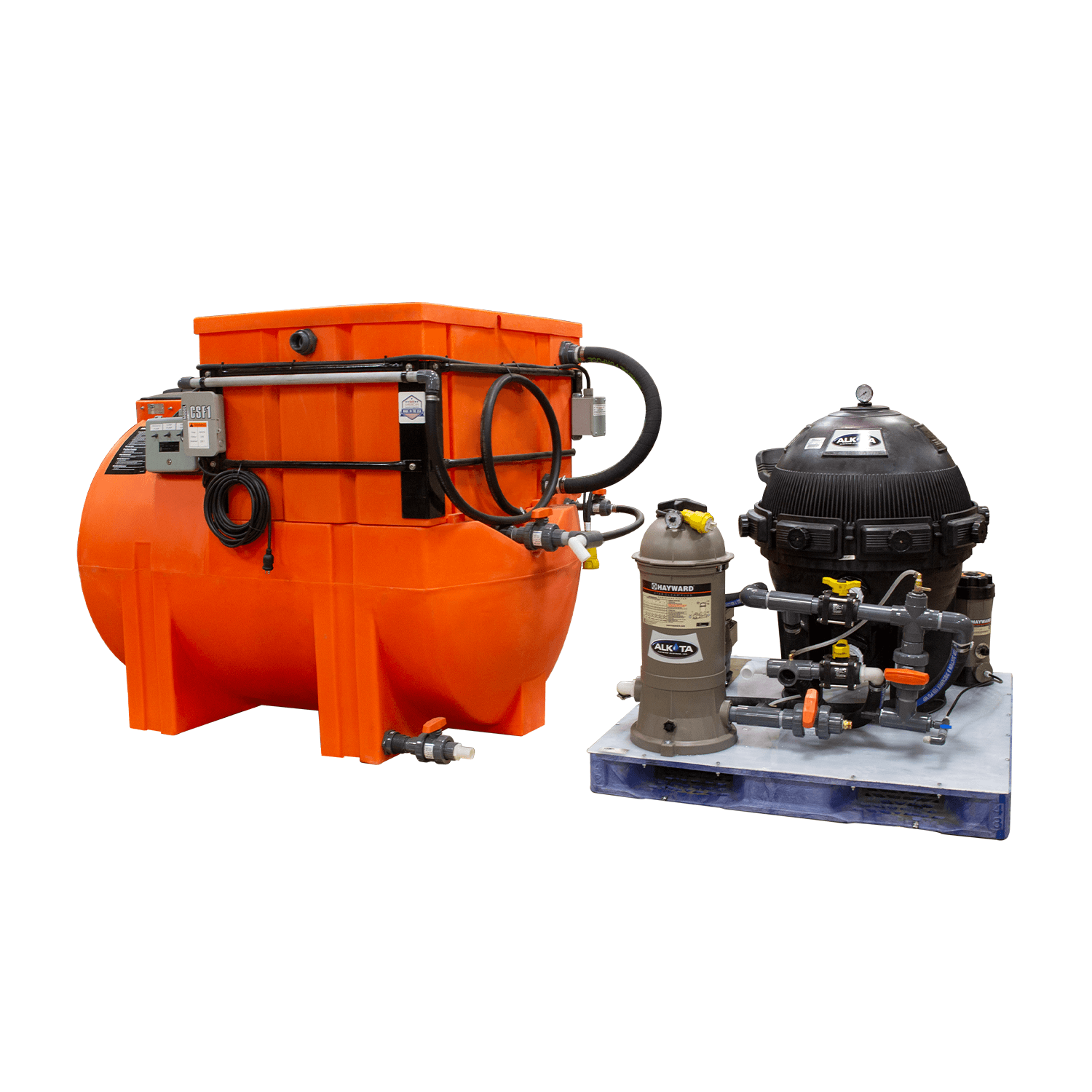

Alkota CSF Series Water Treatment Systems – Modular Media Filtration for Pressure Washer Wastewater
The Alkota CSF Series Media Filtration Systems are a cost-effective, low-maintenance solution for businesses facing water conservation efforts or environmental regulations that restrict the discharge of wastewater from pressure washers or steam cleaners. These advanced water treatment systems are designed to help you stay compliant while protecting your property and the environment.
Built with above-ground storage and processing vessels, the CSF Series ensures ease of access for maintenance and service, making it both practical and efficient. Whether you're working in industrial cleaning, fleet maintenance, or heavy equipment washing, this system offers a reliable way to manage and recycle wash water.
The modular design of the Alkota CSF Series gives you the flexibility to scale your water treatment solution as your business grows or environmental requirements evolve. Additional treatment phases or technologies can be seamlessly integrated, allowing you to customize your filtration system to your site-specific needs.
Key Benefits:
-
Affordable media filtration solution for industrial wastewater treatment
-
Designed for pressure washer and steam cleaner discharge water
-
Above-ground storage for easy maintenance and long-term durability
-
Helps meet local water recycling and discharge compliance requirements
-
Modular configuration allows system upgrades as regulations or usage demands increase
-
Supported by your local Alkota dealer for tailored planning and expert service
If you're looking for a custom water treatment solution that adapts to changing regulations and business needs, the Alkota CSF Series provides the performance and flexibility to help you stay compliant and environmentally responsible.
CSF Media Filtration System Series is a low maintenance affordable way of working with water conservation or environmental regulations that limit the discharge of pressure washer or steam cleaner generated waste streams. This system utilizes above ground storage and process tanks for the ease of service & maintenance. The CSF Series limits the need for underground containment while limiting the exposure for possible leaks that could potentially contaminate property.
Note: #20 Silica Sand and 3” Chlorine Tablets Not Included
| MODEL | FILTRATION | SAND CAPACITY | WT. |
| CSF-5 | 5 GPM | 10 lbs | 1066 |
| CSF-10 | 10 GPM | 300 lbs | 880 |
| Bio-Assist with Dual Mazzei Injector |
| Auto dose pump, 9 volt DC, fits 5 gallon pail |
| 10 GPM Sump Pump Kit (Shop Air Required) |
| Ozone Injector |
| Auto dose pump, 120 volt, wall mount |
| Bio-assist 5 gallons pail – microbes B04-000002 |
| 500 Gallon Tank Complete with Tank Stand & Fittings |
