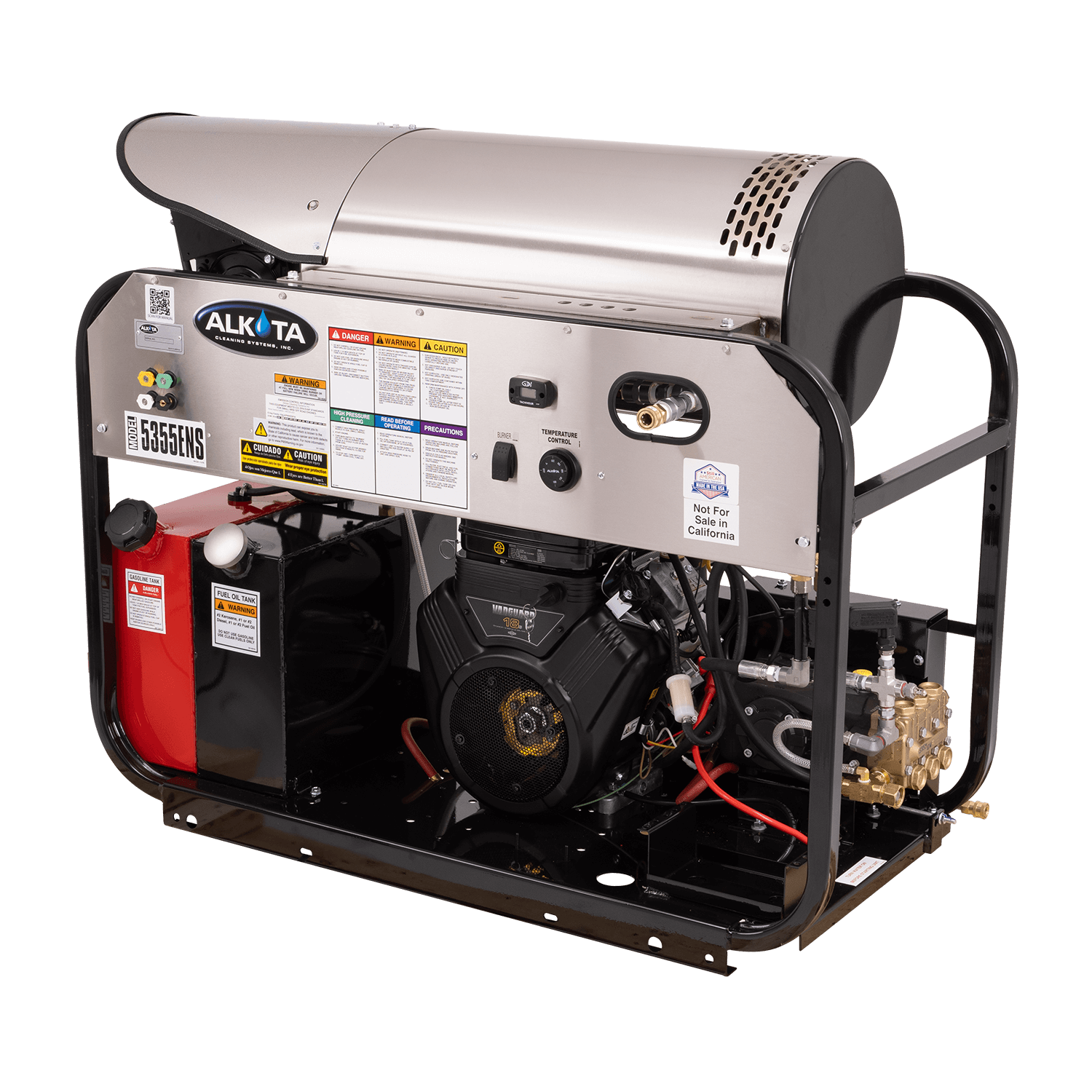

Alkota GED-EN Series Extra Narrow
Alkota Narrow Frame Hot Water Pressure Washer – Specifications & Features
Performance
-
Flow Rate: 5 GPM (gallons per minute)
-
Pressure: 3,500 PSI
-
Temperature Rise: 100°F above incoming water
-
BTU Rating: 355,000 BTU for powerful heating performance
Engine & Power
-
Engine Type: Vanguard 18 HP, Electric Start, Belt Drive
-
Burner Ignition Voltage: 12V auto ignition
-
Note: Battery not included
Fuel & Tank Capacities
-
Fuel Types: Kerosene, #1 Diesel, #2 Diesel
-
Fuel Consumption: 2.5 gal/hour
-
Fuel Tank Capacity: 7 gallons
-
Gasoline Tank Capacity: 7 gallons
Pump & Coil System
-
Pump Style: Oil Bath Crankcase | Triplex Ceramic Plunger
-
Coil Type: Horizontal Schedule 80
-
Coil Construction: Hydro-insulated with cold water wrap
-
Coil Length: 126 ft
-
Coil Diameter: 1/2 inch
Chemical & Water Systems
-
Float Tank Material: Stainless Steel
-
Chemical Injection: High-pressure, precisely metered
Hose & Dimensions
-
Hose Length: 50 ft
-
Hose Diameter: 3/8 in
-
Length: 48 in
-
Width (Portable Model): 31.25 in
-
Width (Stationary Model): 22.25 in
-
Height: 41 in
-
Weight: 700 lbs
Additional Notes
-
Optional wheel kits available for increased portability
-
Optional high limit control available on all 12V burner units
Narrow Frame Hot Water Pressure Washers
Compact, Powerful & Built for Tight Spaces
Alkota’s narrow frame hot water pressure washers are expertly engineered for professionals who need high-performance cleaning power in tight or mobile setups. With the narrowest frame design on the market, these compact hot water pressure washers are perfect for mounting in trailers, vans, or trucks—and easily fit through standard doorways and tight entry points.
Designed for both gas and diesel engine configurations, these pressure washers deliver unmatched mobility, power, and space-saving convenience—ideal for mobile cleaning applications, service fleets, and job sites where every inch matters.
Key Features:
-
Space-saving narrow frame design – perfect for trailer mounting, van installations, or compact job sites
-
Powered by Honda or Vanguard engines for dependable, long-lasting performance
-
Self-contained design – no external power required, just hook up a water source and start cleaning
-
Hydro-insulated coil system enhances user safety and improves energy efficiency
-
Backed by a 7-year coil warranty for peace of mind and long-term reliability
-
Soft Damping System minimizes vibration, protecting the coil, pump, and high-pressure components
Included Accessories:
-
Heavy-duty industrial pressure hose with swivel end and bend restrictor
-
Professional-grade trigger gun with insulation and safety lock
-
Insulated spray wand for added operator safety
-
Quick-connect nozzles for fast changes and efficient cleaning
-
Built-in winterizing valve protects the system from freezing during cold weather
When space is limited but performance can't be compromised, Alkota’s narrow frame hot water pressure washers deliver the perfect combination of portability, power, and durability for demanding commercial and industrial applications.
7 gallon gasoline & diesel fuel tanks • Adjustable temperature control • Hour meter • Racor fuel filter •
Stainless Steel panels and coil wrap • 50 ft high pressure hose with quick disconnects • Trigger shut-off gun with wand • Pulsation dampner for long coil life • 15, 25 & 40 Degree nozzles • Optional Float Tank • 12V Burner Note: U1 Battery required on Electric Start
MODEL | PERFORMANCE | COIL SIZE | BTU | POWER SOURCE | MOUNTING | WT |
4405ENS | 4.0 GPM / 4000 PSI | 14” | 355,000 | Vanguard 18 HP (Electric) | Stationary | 700 |
4405ENL | 4.0 GPM / 4000 PSI | 18” | 355,000 | Vanguard 18 HP (Electric) | Stationary | 700 |
5355ENS | 5.0 GPM / 3500 PSI | 14” | 355,000 | Vanguard 18 HP (Electric) | Stationary | 700 |
5355ENL | 5.0 GPM / 3500 PSI | 18” | 355,000 | Vanguard 18 HP (Electric) | Stationary | 700 |
4405HNS | 4.0 GPM / 4000 PSI | 14” | 355,000 | Honda GX630 (Electric) | Stationary | 700 |
4405HNL | 4.0 GPM / 4000 PSI | 18” | 355,000 | Honda GX630 (Electric) | Stationary | 700 |
5355HNS | 5.0 GPM / 3500 PSI | 14” | 355,000 | Honda GX630 (Electric) | Stationary | 700 |
5355HNL | 5.0 GPM / 3500 PSI | 18” | 355,000 | Honda GX630 (Electric) | Stationary | 700 |
8405HNL | 8.0 GPM / 4000 PSI | 18” | 570,000 | Honda GX800 (Electric) EFI | Stationary | 800 |
5355KNL | 5.0 GPM / 3500 PSI | 18” | 355,000 | Kohler EFI 19 HP (Electric) | Stationary | 800 |
10305HNL | 9.5 GPM / 3000 PSI | 18” | 570,000 | Honda GX800 (Electric) EFI | Stationary | 800 |
Flat Free Wheel Kit with Handle – add 0 in place of X in P/N |
External Stainless Steel Float Tank |
18” Stack adapter 8305-00215 |
14” Stack adapter 4355E-00215 |
Square to 8” round adapter 550-00215 (must be used with 14” or 18” Stack adapter) |
Wireless Remote Control kit – On / Off Motor, Burner & Detergent. Includes Transmitter & Receiver |
Additional Wireless Remote. Transmitter Only |
Stainless Steel Frame W/Pulley Shield |
Bolt Down Kit for Stationary Mounting 5355EN-99009 |
2 – Gun System with Multi Unloader, Hose, Gun & Wand, 7 GPM and Up Models |
