Alkota GED Skid Series

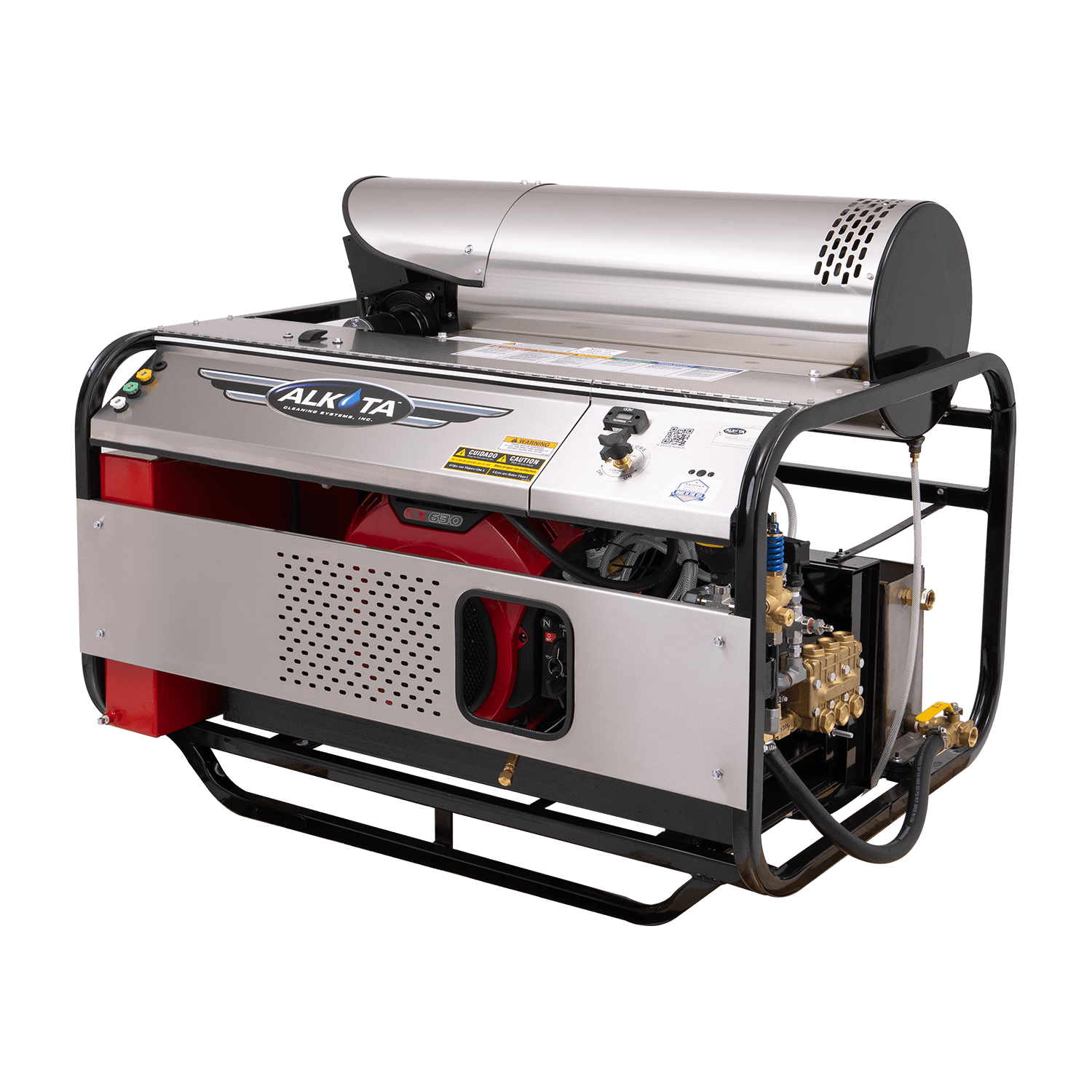

GED Skid Gas Engine Hot Water Pressure Washer – Specifications & Features
Performance
-
Flow Rate: 5 GPM (gallons per minute)
-
Pressure: 3,500 PSI
-
Temperature Rise: 110°F over incoming water temperature
-
BTU Rating: 355,000 BTU – powerful heating for industrial-grade cleaning
Engine & Power
-
Engine Type: Honda GX630, Electric Start, Belt Drive
-
Burner Ignition Voltage: 12V automatic ignition system
-
Note: Battery not included
Fuel & Tanks
-
Fuel Types: Kerosene, #1 Diesel, #2 Diesel
-
Fuel Consumption: 2.5 gal/hour
-
Fuel Tank Capacity: 9.5 gallons
-
Gasoline Tank Capacity: 6 gallons
Pump & Coil System
-
Pump Type: Oil Bath Crankcase | Triplex Ceramic Plunger
-
Coil Type: Horizontal Schedule 80
-
Coil Construction: Hydro-insulated with cold water wrap
-
Coil Length: 126 feet
-
Coil Diameter: 1/2 inch
Chemical & Water System
-
Float Tank: Stainless steel construction for corrosion resistance
-
Chemical Injection: High-pressure, precisely metered for efficient detergent use
Dimensions & Weight
-
Length: 48 in
-
Width: 34 in
-
Height: 38.5 in
-
Weight: 760 lbs
Additional Notes
-
Optional wheel kits available for enhanced mobility
-
Optional high-limit control available for all 12V burner units
GED Skid-Mounted Gas Engine Drive Hot Water Pressure Washers
Powerful, Portable Cleaning — No Electricity Required
Alkota’s skid-mounted, gas engine hot water pressure washers are engineered for heavy-duty, on-the-go cleaning. Built for durability and convenience, these full-size mobile power washing systems feature a 12-volt burner powered directly by the engine’s charging system—no external electricity needed. Just connect a water source, and you’re ready to tackle the toughest jobs.
Perfect for mounting on trailers, trucks, or vans, these industrial skid pressure washers offer unmatched portability and power in one rugged package.
Key Features:
-
Skid-mounted design for easy integration with trucks, trailers, and service vans
-
Gas engine-driven system with 12V burner—no need for external electrical power
-
Durable Schedule 80 heating coil with stainless steel wrapper resists corrosion and wear
-
Welded frame and solid channel engine/pump mount deliver long-lasting stability and performance
-
Hydro-insulated coil design ensures user safety and improves energy efficiency
-
Soft Damping System protects the coil, pump, and pressure components from vibration and shock
-
Backed by a 7-year coil warranty for peace of mind in demanding environments
Included Accessories:
-
Heavy-duty industrial hose with swivel end and bend restrictor
-
Professional-grade insulated trigger gun with safety lock
-
Insulated wand for safe, comfortable operation
-
Quick-connect spray nozzle system for fast and flexible cleaning
-
Built-in winterizing valve to prevent freezing damage in cold conditions
Designed for mobile professionals, Alkota’s skid-mounted hot water pressure washers deliver reliable, high-performance cleaning power wherever you need it—without the hassle of electrical hookups.
Gas engine drive • Electric start • Oil Fired • Skid mount • Belt drive tri-plex pump • 15, 25 & 40 Degree nozzle • Stainless steel wrapper and control panel • 115 or 12 volt burner
available • Non-corrosive float tank with 3-way valve • Black color Frame • 126’ schedule 80 coil 14”•337’ Schedule 80 coil 24”• Group 24 Battery required on Electric Start
12 Volt
MODEL | PERFORMANCE | COIL SIZE | BTU | POWER SOURCE | WT | ||
5355EAD | 5.0 GPM / 3500 PSI | 14” | 355,000 | Vanguard 18 HP (Electric) | 760 | ||
5355J | 5.0 GPM / 3500 PSI | 14” | 355,000 | Honda GX630 (Electric) | 785 | ||
5405J | 5.0 GPM / 4000 PSI | 14″ | 355,000 | Honda GX630 (Electric) | 810 | ||
5505JH | 4.5 GPM / 5000 PSI | 14” | 355,000 | Honda GX630 (Electric) | 850 | ||
5505J | 4.5 GPM / 5000 PSI | 14” | 355,000 | Vanguard 23 HP (Electric) | 850 | ||
8405HA | 8.0 GPM / 4000 PSI | 24” | 625,000 | Honda GX800 (Electric) EFI | 1540 | ||
10305HA | 10 GPM / 3000 PSI | 24″ | 625,000 | Honda GX800 (Electric) EFI | 1750 |
115 Volt
MODEL | PERFORMANCE | COIL SIZE | BTU | POWER SOURCE | WT | |
5305EAB | 5.0 GPM / 3500 PSI | 14″ | 355,000 | Vanguard 18 HP (Electric) | 860 | |
5355JB | 5.0 GPM / 3500 PSI | 14″ | 355,000 | Honda GX630 (Electric) | 810 | |
8305H | 8.0 GPM / 3500 PSI | 18″ | 625,000 | Honda GX800 (Electric) EFI | 1000 |
Wheel Kit, Bolt-on Skid (Not Available for 8405HA) & 10305HA PN# 44056E-99008C |
Cart, Large Wheels with pull handle (CART-00001) |
Stainless Steel Frame |
18” Stack adapter 8305-00215 |
2 – Gun System with Multi Unloader, Hose, Gun & Wand, 7 GPM and Up Models |
4” Stack Adapter 4355E-00215 |
Square to 8” Round Adapter 550-00215 (must be used with 14” & 18” Stack Adapters) |
*Wireless Remote Control kit – On / Off Motor, Burner & Detergent. Includes Transmitter & Receiver |
*Additional Wireless Remote. Transmitter Only |
Wall Mount Bracket for Wireless Remote |
